[Xamarin] 客製化的ListView之章
2013-07-17
上次我們說到簡單的的SimpleExpandableListItem1 來做選單
![Screenshot_2013-07-15-12-39-00_thumb[2]](http://lh3.ggpht.com/-T3Sa-lz-ec8/UeYp6QZTELI/AAAAAAAAF7Q/ibe4Udu36ow/s1600-h/Screenshot_2013-07-15-12-39-00_thumb%25255B2%25255D%25255B3%25255D.png "Screenshot_2013-07-15-12-39-00_thumb[2]")
老闆不會因為這樣而滿足的，因為總是希望一個獨一無二，而且漂亮的List 選單
這篇我們來看看如何實作最後結果為自訂每一個ListItem的選單
1.首先我們先制定我們需要的物件模型，假設每一個UserInfo 都會有這些資料，我們就先建立好物件模型 UserInfo.cs
namespace SimpleTextList{public class UserInfo
{public string Title { get; set; }
public string Desc { get; set; }
public string Image { get; set; }
}
}
再來其中每一個ListItem我們都建立一個對應的Layout( 範例檔名:UserListItemLayout.axml ，這當然是自己設計的)
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent">
<LinearLayout
android:id="@+id/linearContainer"
android:orientation="vertical"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:paddingLeft="10dip">
<TextView
android:id="@+id/tvName"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textColor="#CDFFE7"
android:textSize="20dip"
android:textStyle="italic"
android:text="User's Name" />
<TextView
android:id="@+id/tvDesc"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:textSize="14dip"
android:textColor="#E76DA9"
android:paddingLeft="100dip"
android:text="User's Desc" />
</LinearLayout>
<ImageView
android:id="@+id/imgUser"
android:layout_width="48dp"
android:layout_height="48dp"
android:padding="5dp"
android:src="@drawable/Icon"
android:layout_alignParentRight="true" />
</RelativeLayout>
預覽:
2.再來我們需要寫一個Class 其為ListAdapter 其繼承為 BaseAdapter ，簡單的說他就是在Android 中，你要處理這種貌似於List的Layout 因為框架問題，而且他已經預設幫你處理好render跟很多手勢等問題，所以直接繼承來使用，該範例我取名為 UserListAdapter.cs
using System.Collections.Generic;using System.Net;using Android.App;using Android.Graphics;using Android.Views;using Android.Widget;namespace SimpleTextList{ class UserListAdapter : BaseAdapter<UserInfo> { /// <summary> /// 所有UserInof 的資料 /// </summary>List<UserInfo> items;
Activity context;
public UserListAdapter(Activity context, List<UserInfo> items) : base() { this.context = context; this.items = items;}
public override long GetItemId(int position)
{ return position;}
public override UserInfo this[int position]
{ get { return items[position]; }}
public override int Count
{ get { return items.Count; }}
/// <summary> /// 系統會呼叫 並且render. /// </summary> /// <param name="position"></param> /// <param name="convertView"></param> /// <param name="parent"></param> /// <returns></returns>public override View GetView(int position, View convertView, ViewGroup parent)
{var item = items[position];
var view = convertView;
if (view == null)
{ //使用自訂的UserListItemLayout view = context.LayoutInflater.Inflate(Resource.Layout.UserListItemLayout, null);}
view.FindViewById<TextView>(Resource.Id.tvName).Text = item.Title;
view.FindViewById<TextView>(Resource.Id.tvDesc).Text = item.Desc;
var imageBitmap = GetImageBitmapFromUrl(item.Image);
view.FindViewById<ImageView>(Resource.Id.imgUser).SetImageBitmap(GetImageBitmapFromUrl(item.Image));
return view;}
/// <summary> /// 因為圖片是網址，所以將其圖片download回來後轉為bitmap /// Get IamgeBitmap form url. /// code reference : http://forums.xamarin.com/discussion/4323/image-from-url-in-imageview /// </summary> /// <param name="url"></param> /// <returns></returns>private Bitmap GetImageBitmapFromUrl(string url)
{ Bitmap imageBitmap = null;using (var webClient = new WebClient())
{var imageBytes = webClient.DownloadData(url);
if (imageBytes != null && imageBytes.Length > 0)
{imageBitmap = BitmapFactory.DecodeByteArray(imageBytes, 0, imageBytes.Length);
}
}
return imageBitmap;}
}
}
其中除了GetImageBitmapFromUrl 其他function 因為繼承關係都是必須要實作的，因為我設定的圖片是從網路上面來，所以附上一支可以從網路抓圖下來轉bitmap的function ，也因為沒做cache 的關係，所以會慢一點，在這class 我們發現，他將我步驟1 的 UserInfo 以及 UserListItemLayout 產生綁定，並且render 出 View 讓android 系統去畫~
3.現在Adapter做好了我們就來呼叫 首先我們產生一個Layout 來放一個ListView來render UserListItemLatout
ChooseUserLayout.axml :
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:minWidth="25px"
android:minHeight="25px">
<ListView
android:minWidth="25px"
android:minHeight="25px"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:id="@+id/listViewMain" />
</LinearLayout>
接下來，就是他搭配的Activity 部分
ChooseUserActivity.cs :
using System.Collections.Generic;using Android.App;using Android.OS;using Android.Widget;namespace SimpleTextList{ [Activity(Label = "請選擇用戶")]public class ChooseUserActivity : Activity
{ private List<UserInfo> datas;ListView listView;
protected override void OnCreate(Bundle bundle)
{ base.OnCreate(bundle);SetContentView(Resource.Layout.ChooseUserLayout);
listView = FindViewById<ListView>(Resource.Id.listViewMain);
//載入假資料 datas = new List<UserInfo>();datas.Add(new UserInfo { Title = "Donma", Desc = "當麻許，業餘的code generator", Image = "http://graph.facebook.com/donma.hsu/picture" });
datas.Add(new UserInfo { Title = "Tony Stark", Desc = "Genius, billionaire, playboy, philanthropist.", Image = "http://graph.facebook.com/tonystarkpage/picture" });
datas.Add(new UserInfo { Title = "Black Widow", Desc = "Real Name - Natalia Alianovna", Image = "http://graph.facebook.com/blackwidowmovie/picture" });
listView.Adapter = new UserListAdapter(this, datas);
listView.ItemClick += listView_ItemClick;
}
/// <summary> /// 點選item 後的事件 /// </summary> /// <param name="sender"></param> /// <param name="e"></param>void listView_ItemClick(object sender, AdapterView.ItemClickEventArgs e)
{Toast.MakeText(this, "你選擇了 " + datas[e.Position].Title, ToastLength.Short).Show();
}
}
}
在這裡，我們放入三筆假資料，並且指定說其主ListView 使用的Adapter 為 UserListAdapter(來自於步驟2)，並且指定其點擊後toast 其UserInfo的Title
4.接下來就是主Activity 將步驟3的 ChooseUserActivity給叫起
var btnUserList = FindViewById<Button>(Resource.Id.btnUserList);
btnUserList.Click += delegate{ StartActivity(typeof(ChooseUserActivity));};

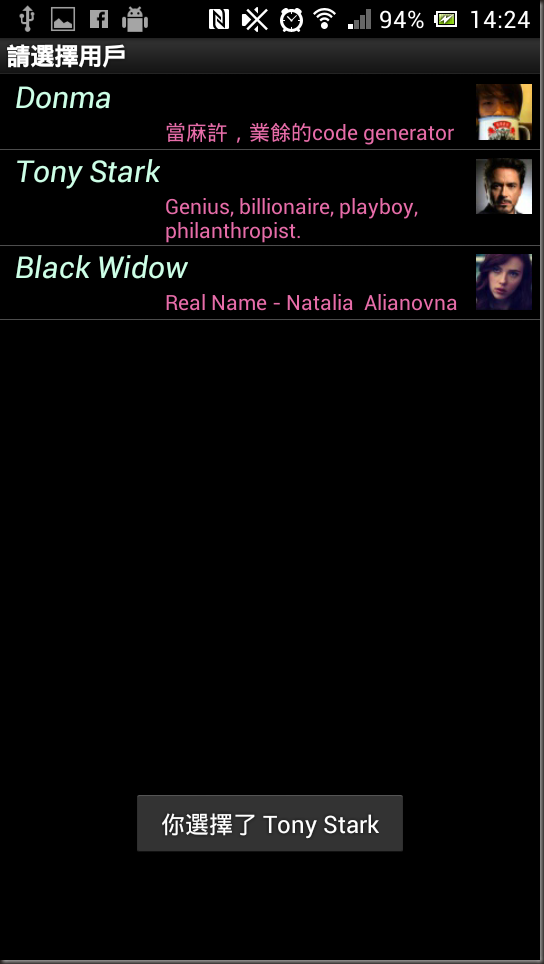

結果:
Source code:
參考文件:
http://developer.android.com/reference/android/widget/BaseAdapter.html
http://docs.xamarin.com/guides/android/user_interface/working_with_listviews_and_adapters
http://docs.xamarin.com/guides/android/user_interface/working_with_listviews_and_adapters/part_3_-_customizing_a_listview%27s_appearance
